In the realm of automotive maintenance, understanding the critical components that keep your engine running smoothly is essential. Among these components, fuel filters and oil filters play pivotal roles. Despite their similar names, they serve distinct functions, are located in different parts of the vehicle, vary in size, and require different maintenance practices. This article delves into the functional differences, locations and sizes, maintenance importance, types and selection, and replacement cycles of fuel filters and oil filters.
Functional Difference
Fuel Filters: Keeping Fuel Clean
Fuel filters are designed to remove impurities and contaminants from the fuel before it reaches the engine. The fuel used in vehicles can contain a variety of contaminants such as dirt, rust, paint chips, and other debris that can accumulate during storage and transportation. If these impurities are allowed to enter the engine, they can cause significant damage to the fuel injectors and other critical engine components.
How It Works
Fuel filters typically consist of a paper filter element that traps contaminants as fuel passes through it. The fuel enters the filter through an inlet and flows through the filtering material, which catches the impurities. Clean fuel then exits the filter through an outlet, ready for combustion in the engine. Advanced fuel filters may use multiple layers of filtration material or additional media like activated carbon to enhance filtration efficiency.
Oil Filters: Purifying the Lifeblood of the Engine
Oil filters, on the other hand, are designed to remove particulate matter and contaminants from the engine oil. Engine oil is crucial for lubricating moving parts, reducing friction, and cooling the engine. Over time, the oil can become contaminated with dirt, metal particles, and other debris that result from engine wear and combustion processes. Without an effective oil filter, these contaminants can cause significant wear and tear on the engine.
How It Works
Oil filters are typically composed of a pleated paper filter element that captures contaminants as the oil circulates through the engine. The oil pump forces the oil through the filter, where it passes through the filtering material, trapping particles and impurities. Clean oil then flows back into the engine, ensuring optimal lubrication and protection for engine components. Some oil filters also incorporate a bypass valve that allows oil to bypass the filter if it becomes clogged, ensuring continuous lubrication even if the filter is compromised.
Location and Size
Fuel Filters: Placement and Dimensions
The location of the fuel filter can vary depending on the make and model of the vehicle. In many modern cars, the fuel filter is located inside the fuel tank, integrated with the fuel pump assembly. This design helps protect the filter from external contaminants and makes it easier to replace as part of the fuel pump module. In other vehicles, the fuel filter may be located along the fuel line, either under the car or in the engine compartment.
Size
Fuel filters are generally smaller in size compared to oil filters. Their compact design is necessary to fit within the fuel system’s tight spaces and ensure efficient filtration without impeding fuel flow. The size can vary significantly based on the vehicle’s fuel system design, with some filters being as small as a few inches in length and others being larger, inline filters that are cylindrical in shape.
Oil Filters: Location and Dimensions
Oil filters are usually located on the engine block, making them relatively easy to access during routine maintenance. The exact location can vary, but they are typically found near the bottom or side of the engine. This placement allows for easy drainage of the oil when changing the filter and ensures that the filter can effectively clean the oil as it circulates through the engine.
Size
Oil filters are generally larger than fuel filters, reflecting the higher volume of oil they need to process. They come in various sizes and shapes, including spin-on filters that resemble metal canisters and cartridge filters that fit into a housing. The size of the oil filter can affect its filtration capacity and efficiency, with larger filters generally offering better filtration performance and longer service life.
Maintenance Importance
Fuel Filters: Why Regular Replacement is Crucial
Regular replacement of the fuel filter is essential for maintaining the health and performance of the engine. A clogged or dirty fuel filter can restrict fuel flow, leading to poor engine performance, reduced fuel efficiency, and difficulty starting the vehicle. In severe cases, a clogged fuel filter can cause the engine to stall or prevent it from starting altogether.
Consequences of Neglect
Ignoring fuel filter maintenance can result in significant engine damage. Contaminants in the fuel can cause wear and tear on fuel injectors, leading to costly repairs or replacements. Additionally, poor fuel flow can cause the engine to run lean, increasing the risk of overheating and damaging internal components.
Oil Filters: The Lifeline of Engine Longevity
Oil filters play a vital role in protecting the engine by ensuring that the oil remains clean and free of contaminants. Regular replacement of the oil filter is crucial for maintaining optimal engine performance and extending the engine’s lifespan. A clogged or dirty oil filter can reduce oil flow, leading to inadequate lubrication, increased friction, and overheating.
Consequences of Neglect
Failing to replace the oil filter can result in severe engine damage. Contaminants in the oil can cause increased wear on engine components, leading to premature failure and costly repairs. Additionally, inadequate oil flow can cause the engine to seize, resulting in catastrophic damage that may require a complete engine rebuild or replacement.
See also: Gasoline Engine Vs Diesel Engine: What Is The Difference?
Types and Selection
Fuel Filters: Variety and Selection Criteria
Fuel filters come in several types, each designed for specific applications and fuel systems. When selecting a fuel filter, it’s important to consider the vehicle’s make and model, as well as the type of fuel system it uses.
Types of Fuel Filters
1.In-Tank Filters
These filters are integrated with the fuel pump assembly inside the fuel tank. They are commonly used in modern vehicles and offer excellent protection against contaminants.
2.Inline Filters
These filters are located along the fuel line and are typically used in older vehicles or high-performance applications. They are easy to access and replace, making them a popular choice for aftermarket modifications.
3.Carburetor Filters
These filters are designed for vehicles with carbureted engines and are typically located near the carburetor. They are less common in modern vehicles but still important for older models.
Selection Criteria
1.Compatibility
Ensure the filter is compatible with the vehicle’s make, model, and fuel system type.
2.Filtration Efficiency
Look for filters with high filtration efficiency to ensure optimal protection against contaminants.
3.Flow Rate
Choose a filter with the appropriate flow rate for the vehicle’s fuel system to prevent fuel starvation and performance issues.
Oil Filters: Diversity and Choice Considerations
Oil filters also come in various types, each suited to different engine designs and performance requirements. Selecting the right oil filter involves considering the vehicle’s make and model, engine specifications, and driving conditions.
Types of Oil Filters

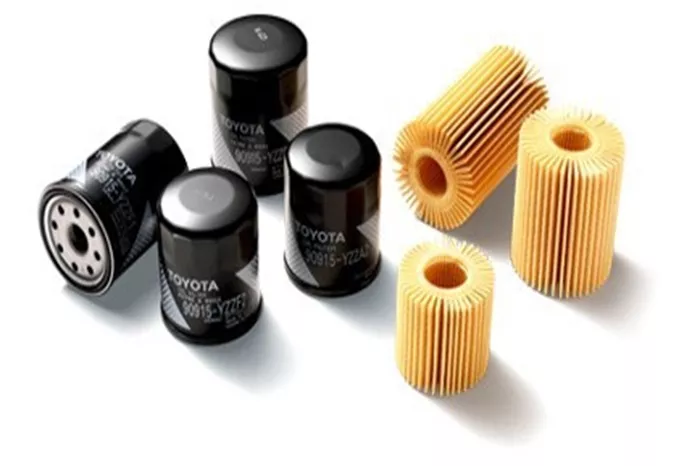

1.Spin-On Filter
These are the most common type of oil filter, featuring a metal canister that screws onto the engine. They are easy to install and replace, making them a popular choice for most vehicles.
2.Cartridge Filters
These filters consist of a replaceable filter element that fits into a permanent housing on the engine. They are commonly used in European and high-performance vehicles.
3.Magnetic Filters
These filters incorporate magnets to attract and capture metal particles from the oil, providing an additional layer of protection for the engine.
4.Bypass Filters
These filters are used in conjunction with the primary oil filter to provide additional filtration. They are often used in heavy-duty and high-performance applications.
Selection Criteria
1.Compatibility
Ensure the filter is compatible with the vehicle’s make, model, and engine specifications.
2.Filtration Efficiency
Look for filters with high filtration efficiency to ensure optimal protection against contaminants.
3.Capacity
Choose a filter with adequate capacity to handle the engine’s oil volume and filtration needs.
4.Construction Quality
Opt for filters made from high-quality materials to ensure durability and reliability.
Replacement Cycle
Fuel Filters: Recommended Intervals and Warning Signs
The recommended replacement interval for fuel filters can vary depending on the vehicle’s make and model, as well as driving conditions. Generally, it is advisable to replace the fuel filter every 20,000 to 40,000 miles. However, some manufacturers may recommend longer intervals, especially for vehicles with in-tank fuel filters.
Signs of a Clogged Fuel Filter
1.Difficulty Starting
A clogged fuel filter can restrict fuel flow, making it difficult to start the engine.
2.Poor Engine Performance
A dirty fuel filter can cause the engine to run poorly, with symptoms such as misfiring, hesitation, and reduced power.
3.Reduced Fuel Efficiency
A clogged fuel filter can lead to poor fuel economy, as the engine has to work harder to draw fuel.
4.Engine Stalling
In severe cases, a clogged fuel filter can cause the engine to stall or prevent it from starting altogether.
Oil Filters: Replacement Guidelines and Indications
The recommended replacement interval for oil filters is typically aligned with the vehicle’s oil change schedule. For most vehicles, this means replacing the oil filter every 3,000 to 5,000 miles, or as specified by the manufacturer. However, advancements in oil and filter technology have extended these intervals for many modern vehicles, with some manufacturers recommending oil changes and filter replacements every 7,500 to 10,000 miles.
Signs of a Failing Oil Filter
1.Oil Pressure Warning Light
A clogged or dirty oil filter can cause a drop in oil pressure, triggering the oil pressure warning light on the dashboard.
2.Engine Noise
Insufficient oil flow due to a clogged filter can cause increased friction and noise from the engine.
3.Dirty Oil
If the oil appears dirty or contaminated when checked, it may indicate that the oil filter is not effectively filtering the oil.
4.Decreased Performance
A failing oil filter can cause reduced engine performance, with symptoms such as sluggish acceleration and poor fuel economy.
Conclusion
In conclusion, both fuel filters and oil filters are essential components in maintaining the health and performance of your vehicle’s engine. While they serve different functions and are located in different parts of the vehicle, their importance cannot be overstated. Regular maintenance and replacement of these filters are crucial for preventing engine damage and ensuring optimal performance.
By understanding the functional differences, locations, sizes, and maintenance requirements of fuel filters and oil filters, you can make informed decisions about their care and replacement. Additionally, knowing the different types of filters and how to select the right one for your vehicle can help you maintain your engine’s health and longevity.
Remember, neglecting these filters can lead to significant engine damage and costly repairs. Regularly check and replace your fuel and oil filters according to the manufacturer’s recommendations and be vigilant for any warning signs of a clogged or failing filter. With proper maintenance, your vehicle’s engine will run smoothly and efficiently for many miles to come.
