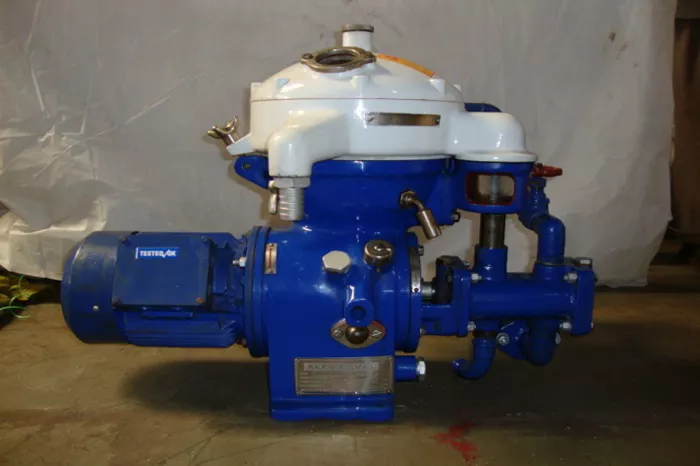

Fuel oil purifiers are critical components in maritime and industrial applications where heavy oil is used. Their primary function is to remove sediment, sludge, and moisture from heavy fuel oils, ensuring the efficient and safe operation of machinery. This article delves into the basic principles, working processes, and key components of fuel oil purifiers, providing a comprehensive understanding of how these vital devices function.
The Basic Principle of a Fuel Oil Purifier
Fuel oil purifiers operate on the principle of centrifugal separation. This principle involves using centrifugal force to separate substances with different densities. The key objective of a fuel oil purifier is to ensure that heavy fuel oils, which often contain contaminants such as water, sludge, and sediment, are cleaned to meet the stringent standards required for efficient combustion in engines and boilers.
Centrifugal Force
Centrifugal force is the apparent force that acts outward on a body moving around a center, arising from the body’s inertia. In a fuel oil purifier, an electric motor rotates a bowl at very high speeds, generating a substantial centrifugal force. This force acts on the fuel oil mixture within the bowl, causing the denser impurities to move outward towards the periphery while the less dense, purified fuel collects at the center.
Separation of Liquids with Different Densities
Fuel oil purifiers are specifically designed to handle the challenge of separating liquids (fuel oil and water) and solids (sediment and sludge) with varying densities. The centrifugal force created by the high-speed rotation of the bowl effectively separates these components based on their density differences. This principle ensures that impurities, which are denser than the fuel oil, are efficiently separated and removed.
Working Process of a Fuel Oil Purifier
The working process of a fuel oil purifier involves several stages, each crucial to achieving the desired level of fuel cleanliness. Below is a step-by-step overview of this process:
Inlet of Dirty Fuel
The process begins with the entry of dirty fuel into the purifier. The fuel, often contaminated with water, sediment, and sludge, enters the purifier through an inlet. The design of the inlet ensures that the fuel is evenly distributed across the disc stack, promoting efficient separation.
Flow Through the Disc Stack
Once inside the purifier, the dirty fuel flows through a series of discs arranged in a stack. These discs are critical in enhancing the separation process. The spacing between the discs creates thin layers of fuel, allowing the centrifugal force to act more effectively. As the fuel passes through the disc stack, the centrifugal force causes the denser impurities to move outward.
Separation of Impurities
The high-speed rotation of the bowl generates a powerful centrifugal force that acts on the fuel mixture. This force causes the impurities (water, sediment, and sludge) to migrate towards the outer edge of the discs. The cleaned fuel, being less dense, remains closer to the center of the disc stack.
Collection of Purified Fuel
The purified fuel is collected at the center of the bowl. From here, it is discharged through an outlet pipe, ready for use in engines or boilers. The design of the outlet ensures that only the cleanest fuel is collected, minimizing the risk of contaminants entering the fuel system.
Discharge of Separated Impurities
The separated impurities, now accumulated at the periphery of the bowl, need to be removed to maintain the efficiency of the purifier. This is accomplished through a solid discharge system. The system periodically discharges the accumulated impurities, ensuring that the purifier continues to operate effectively.
Parts and Functions of a Fuel Oil Purifier
A fuel oil purifier comprises several key components, each with specific functions that contribute to the overall operation and efficiency of the device. Understanding these parts and their functions is essential for proper maintenance and troubleshooting.
Frame and Cover Assembly
The frame and cover assembly of a fuel oil purifier include the cover, pipe, frame, and other structural components. This assembly provides the necessary support and protection for the internal components. Important specifications such as the brand, motor capacity, and safety reminders are typically marked on the frame and cover assembly, offering critical information for operators.
Vertical Shaft Part
The vertical shaft is a pivotal component in the operation of a fuel oil purifier. The bowl body, where the separation process occurs, is mounted on top of the vertical shaft. This shaft is driven by gears, which increase the rotation speed provided by the horizontal axis. The enhanced rotation speed is crucial for generating the high centrifugal force needed for effective separation.
Water Chamber
The water chamber plays multiple roles in the operation of a fuel oil purifier. It is responsible for introducing water into the bowl, which helps open or close the main cylinder. This function is essential for the periodic discharge of sludge and impurities accumulated during operation. Additionally, the water chamber provides sealing water and replacement water in the bowl, ensuring that the separation process remains efficient.
See also: Gasoline Engine Vs Diesel Engine: What Is The Difference?
Detailed Examination of Key Components
To fully appreciate the functionality of a fuel oil purifier, it’s beneficial to delve deeper into the key components and their specific roles. This section provides a more detailed examination of these critical parts.
Disc Stack
The disc stack is central to the separation process in a fuel oil purifier. It consists of a series of conical discs arranged in a stack within the bowl. The primary function of the disc stack is to increase the surface area available for separation. As the dirty fuel flows through the narrow gaps between the discs, the centrifugal force effectively drives the denser impurities to the outer edge while the cleaner fuel remains closer to the center.
The design and spacing of the discs are crucial for optimal separation efficiency. Any irregularities or damage to the discs can significantly impact the performance of the purifier, highlighting the importance of regular maintenance and inspection.
Bowl
The bowl is the heart of the fuel oil purifier, where the actual separation of impurities from the fuel oil takes place. It is a cylindrical vessel that rotates at high speeds, driven by the vertical shaft. The high rotational speed generates the centrifugal force necessary for separation.
The bowl is designed to withstand the intense forces generated during operation. It is typically made from high-strength materials to ensure durability and longevity. Inside the bowl, the disc stack is housed, and the separation process unfolds as described earlier.
Electric Motor
The electric motor is the active device that powers the fuel oil purifier. It drives the vertical shaft and, consequently, the bowl at high speeds. The motor’s capacity and specifications are critical factors in determining the efficiency and effectiveness of the purifier. A well-maintained motor ensures that the purifier operates at optimal speeds, generating the necessary centrifugal force for effective separation.
Gear System
The gear system plays a crucial role in transferring and increasing the rotational speed from the motor to the vertical shaft and bowl. This system ensures that the bowl rotates at the high speeds required for generating sufficient centrifugal force. The gear system must be precisely engineered and regularly maintained to ensure smooth and efficient operation.
Solid Discharge System
The solid discharge system is responsible for removing the accumulated impurities from the purifier. This system operates periodically, discharging the separated sludge and sediment from the bowl. The design of the discharge system ensures that the removal of impurities does not interrupt the continuous operation of the purifier. Regular discharge cycles are essential to maintain the efficiency and effectiveness of the purifier.
Sealing and Replacement Water Systems
The sealing and replacement water systems are integral to the operation of the fuel oil purifier. Sealing water is used to maintain the integrity of the separation process, preventing the ingress of air and ensuring that the fuel remains within the bowl during operation. Replacement water is used to replenish the water lost during the discharge of impurities and to maintain the correct balance within the bowl.
These water systems are critical for the smooth operation of the purifier. Any issues with water supply or quality can significantly impact the efficiency of the separation process.
Maintenance and Troubleshooting
Effective maintenance and troubleshooting are essential for the reliable operation of fuel oil purifiers. Regular maintenance ensures that the purifier operates at peak efficiency, while prompt troubleshooting addresses any issues that may arise, minimizing downtime and preventing potential damage.
Regular Inspection
Regular inspection of the fuel oil purifier is crucial for identifying wear and tear, potential issues, and ensuring all components are functioning correctly. Key areas to inspect include:
Disc Stack: Check for any damage or irregularities in the discs.
Bowl: Inspect for signs of wear, cracks, or damage.
Electric Motor: Ensure the motor is operating smoothly without unusual noises or vibrations.
Gear System: Check for proper lubrication and any signs of wear.
Water Systems: Verify the proper functioning of sealing and replacement water systems.
Cleaning and Servicing
Regular cleaning and servicing of the fuel oil purifier are essential to maintain its efficiency. This includes:
Cleaning the Disc Stack: Remove and clean the discs to prevent the buildup of impurities.
Servicing the Bowl: Regularly clean and service the bowl to remove any accumulated sludge or sediment.
Motor and Gear Maintenance: Ensure the motor and gear system are properly lubricated and free from any obstructions or wear.
Troubleshooting Common Issues
Common issues with fuel oil purifiers can often be resolved through effective troubleshooting. Some typical problems and their potential solutions include:
Reduced Separation Efficiency: Check for clogged or damaged discs, insufficient centrifugal force, or issues with the water systems.
Unusual Noises or Vibrations: Inspect the motor, gear system, and bowl for any signs of wear or damage.
Inconsistent Fuel Flow: Verify the proper functioning of the inlet and outlet pipes, and check for any obstructions.
Conclusion
Fuel oil purifiers are indispensable devices in ensuring the cleanliness and efficiency of heavy fuel oils used in maritime and industrial applications. By operating on the principle of centrifugal separation, these purifiers effectively remove sediment, sludge, and moisture from fuel oil, ensuring optimal performance of engines and boilers.
Understanding the working process and key components of fuel oil purifiers is essential for their effective operation and maintenance. Regular inspection, cleaning, and troubleshooting are crucial in maintaining the efficiency and reliability of these vital devices.
As technology advances, fuel oil purifiers continue to evolve, incorporating more sophisticated designs and features to enhance their performance. Staying abreast of these developments and adhering to best practices in maintenance and operation will ensure that fuel oil purifiers remain a cornerstone of efficient and reliable fuel management systems.
