Liquefied Natural Gas (LNG) has become an essential component in the global energy market due to its efficiency in transportation and storage. This fuel, which is natural gas in its liquid state, plays a crucial role in balancing supply and demand across the globe. Natural gas is liquefied to increase its volume efficiency for transport via tankers, making international trade of this energy source feasible.
LNG is formed by cooling natural gas to approximately -162°C (-260°F), reducing its volume by a factor of around 600. This transformation allows for efficient storage and shipping. In its liquefied state, LNG is odorless, colorless, non-toxic, and non-corrosive, making it a safer alternative to many other fuels. The shipment of LNG is facilitated by specialized vessels called LNG tankers, which are designed to maintain the gas in its liquid state during long voyages.
In this article, we will explore the factors that influence how much LNG a tanker can carry, the types of tankers in the market, and the operational aspects that impact their capacity. Additionally, we will examine the key technologies and infrastructure that enable safe and efficient LNG transport. This detailed overview will give you a clear understanding of LNG tankers, their capacities, and the intricate logistics involved in moving liquefied natural gas across vast distances.
LNG Tankers: An Overview
What Are LNG Tankers?
LNG tankers are specialized vessels designed to transport liquefied natural gas in large quantities. They are equipped with cryogenic systems that ensure the gas remains at the required low temperatures to maintain its liquid state throughout the journey. The development of LNG tankers has allowed for the international export of natural gas, facilitating the growth of a global LNG market.
The design of these vessels is a critical factor in determining how much LNG they can carry. LNG tankers typically feature multiple insulated tanks to store the liquefied gas. These tanks are either spherical (Moss-type) or membrane-type, each offering distinct advantages in terms of capacity, maintenance, and safety.
The capacity of LNG tankers has grown over time as demand for LNG has increased. Early tankers could carry between 25,000 and 30,000 cubic meters of LNG, while modern vessels can transport over 200,000 cubic meters. This growth in capacity reflects advancements in technology, improvements in shipbuilding techniques, and the expansion of global LNG trade.
Why Is LNG Liquefied?
The liquefaction of natural gas is a critical step in the process of transporting it across long distances. Natural gas in its gaseous form is much less dense than its liquid counterpart, making it impractical to store and transport large quantities of gas in pipelines over vast distances. By converting natural gas into LNG, the volume is significantly reduced, allowing for efficient transport via tankers.
LNG is typically transported from regions with abundant natural gas reserves, such as the Middle East, Russia, and the United States, to areas with high energy demand but limited natural gas production, such as Japan, South Korea, and parts of Europe. The ability to liquefy and transport natural gas via tankers has revolutionized the global energy market, enabling countries to diversify their energy supply and reduce dependence on single sources of natural gas.
See also: Why Is LNG Liquefied For Sea Transportation?
LNG Tanker Capacity
Key Factors Influencing Capacity
The capacity of an LNG tanker is influenced by several factors, including:
Tank Design: There are two main types of tanks used in LNG carriers: spherical (Moss-type) and membrane-type. The tank design directly impacts the overall cargo capacity of the vessel.
Vessel Size: LNG tankers come in various sizes, from small vessels that carry 25,000 cubic meters to large tankers that can carry over 266,000 cubic meters of LNG. Vessel size is determined by factors such as the port infrastructure at both loading and unloading terminals and the specific trade route.
Tank Insulation: Insulation plays a crucial role in minimizing boil-off gas (BOG), which refers to the small amounts of LNG that evaporate during transport. Advances in insulation technology have helped reduce BOG, allowing tankers to carry more LNG.
Safety Regulations: LNG is a highly controlled cargo, and safety regulations limit the design and operation of tankers. Compliance with international safety standards ensures that LNG tankers operate safely but may also impact their capacity.
Types of LNG Tankers and Their Capacities
There are different classifications of LNG tankers based on their size and capacity:
Small-Scale LNG Tankers: These tankers carry between 1,000 and 30,000 cubic meters of LNG. They are primarily used for regional trade and are suitable for small ports or areas with limited infrastructure.
Medium-Sized LNG Tankers: These vessels typically transport between 30,000 and 100,000 cubic meters of LNG. They are often used for shorter international routes or for regions with moderate LNG demand.
Large LNG Tankers: Large tankers can carry between 100,000 and 200,000 cubic meters of LNG. These vessels are the workhorses of the LNG trade, transporting gas between major producing and consuming regions.
Q-Max Tankers: Q-Max refers to the largest LNG tankers in operation, with capacities of up to 266,000 cubic meters. These vessels were designed to serve Qatar’s LNG export market and maximize the amount of LNG that can be transported through the Suez Canal.
Tanker Design and Technology
Membrane vs. Moss-Type Tankers
There are two main designs for LNG tanks within a tanker: membrane and Moss-type.
Membrane-Type Tankers: These tankers have a series of flat, prismatic tanks that are supported by the structure of the ship. The tanks are made from a thin metal membrane, typically of nickel-steel alloy, which provides excellent thermal conductivity and ensures the gas remains at cryogenic temperatures. Membrane-type tankers offer more efficient use of space, allowing for higher LNG capacity.

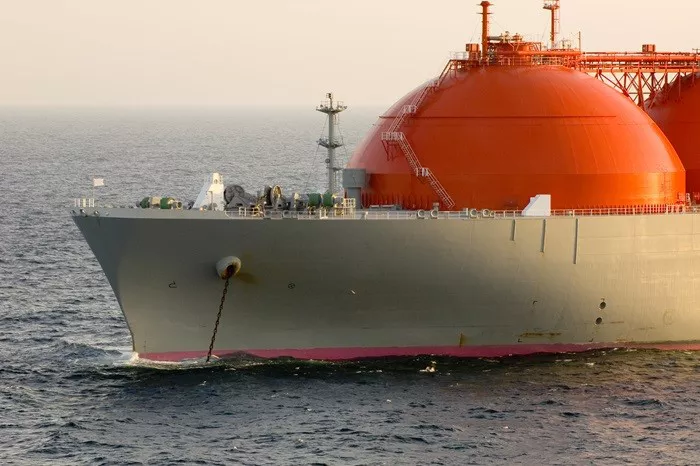

Moss-Type Tankers: These tankers feature spherical tanks that are independent of the ship’s structure. The spherical shape minimizes stress and allows for better structural integrity. Although Moss-type tanks take up more space on the vessel, they are often preferred for safety reasons as they are less prone to damage during rough seas.
Both designs are widely used in the LNG industry, with membrane-type tankers generally offering higher capacities due to their more efficient use of space. However, Moss-type tankers have a proven track record of safety and durability, making them a popular choice for high-risk routes or challenging environmental conditions.
Insulation and Boil-Off Gas Management
One of the challenges of transporting LNG is managing boil-off gas (BOG). Even with advanced insulation systems, some of the LNG will inevitably evaporate due to the slight rise in temperature during the voyage. This gas must be managed carefully to prevent loss of cargo and maintain safety.
Modern LNG tankers are equipped with re-liquefaction systems that capture the boil-off gas, compress it, and return it to the cargo tanks as LNG. Alternatively, some tankers use boil-off gas to fuel the ship’s engines, reducing the need for other fuel sources and improving energy efficiency.
Technological Advancements in LNG Tankers
Advances in technology have significantly increased the efficiency and capacity of LNG tankers. Some key innovations include:
Floating LNG Production (FLNG) Units: These vessels are capable of both producing and storing LNG, eliminating the need for land-based infrastructure. FLNG units can carry substantial amounts of LNG, often rivaling the capacities of large-scale tankers.
Dual-Fuel Engines: Many modern LNG tankers are equipped with dual-fuel engines that can run on both traditional marine fuels and boil-off gas. This technology reduces emissions and improves fuel efficiency, making LNG tankers more environmentally friendly.
Advanced Navigation Systems: LNG tankers are equipped with state-of-the-art navigation systems that enhance safety and efficiency during transit. These systems are crucial for navigating narrow waterways, such as the Suez Canal or Panama Canal, which are often used by large LNG carriers.
LNG Infrastructure and Global Trade Routes
Export and Import Terminals
LNG tankers rely on specialized infrastructure at both the exporting and importing locations. LNG export terminals are equipped with liquefaction facilities, where natural gas is cooled to its liquid state and loaded onto tankers. These terminals are typically located near large natural gas fields.
At the receiving end, LNG import terminals are equipped with regasification facilities, which convert the LNG back into its gaseous state before it is distributed via pipelines to end users. The availability of these terminals is a critical factor in determining which trade routes LNG tankers can use.
Key Global Trade Routes
LNG tankers travel vast distances to deliver cargoes between producing and consuming regions. Some of the most important trade routes include:
Middle East to Asia: The Middle East, particularly Qatar, is one of the largest exporters of LNG, with much of its cargo destined for countries such as Japan, South Korea, and China.
United States to Europe and Asia: The United States has emerged as a significant LNG exporter in recent years, shipping gas to both Europe and Asia. The expansion of the Panama Canal has made it easier for US LNG to reach Asian markets.
Russia to Europe and Asia: Russia is another key LNG exporter, with its Yamal LNG project serving both European and Asian markets. Arctic LNG carriers are specially designed to navigate the challenging conditions of the Northern Sea Route, which shortens the distance between Russia and Asia.
Conclusion
The amount of LNG that a tanker can carry depends on various factors, including vessel size, tank design, and technological advancements in insulation and BOG management. As the global demand for LNG continues to grow, the capacity of tankers has expanded, with some of the largest vessels capable of transporting up to 266,000 cubic meters of LNG.
LNG tankers play a critical role in connecting gas producers with consumers across the globe, enabling the efficient and safe transport of one of the world’s most important energy sources. As technology continues to advance, we can expect to see even larger and more efficient LNG carriers, helping to meet the ever-increasing demand for clean, reliable energy.
