Diesel fuel is one of the most widely used fuels for heavy machinery, vehicles, and industrial processes. Unlike gasoline, diesel engines rely on compression rather than spark to ignite the fuel, giving them a unique efficiency that is particularly well-suited for long-haul transportation and heavy-duty applications. However, diesel fuel has its limitations, particularly when it comes to cold weather conditions.
As temperatures drop, diesel fuel can undergo physical and chemical changes that may affect performance, engine function, and the overall operation of diesel-powered equipment. In this article, we’ll explore what happens to diesel fuel when it gets cold, why it’s a concern, and how to mitigate these cold-weather challenges.
Understanding the Composition of Diesel Fuel
Diesel fuel is a complex mixture of hydrocarbons, primarily derived from crude oil. It is made up of chains of hydrogen and carbon atoms (C-H bonds), and the length of these chains can vary. Some chains are relatively short, while others are long and more complex. Diesel fuel generally falls into the middle distillate range of hydrocarbons, meaning its molecules are larger and heavier compared to gasoline but smaller than residual fuels like bunker fuel.
Paraffin Wax in Diesel Fuel
One of the main components of diesel fuel that plays a crucial role in how it behaves in cold temperatures is paraffin wax. In liquid form, paraffin is dissolved in diesel fuel and does not interfere with engine function. However, when temperatures fall, paraffin wax solidifies into crystals, causing several potential issues.
Types of Diesel Fuels
There are different grades of diesel fuel, which can perform differently in cold conditions:
#1 Diesel: Also known as kerosene, #1 diesel has a lower viscosity and contains less paraffin, making it more resistant to gelling at low temperatures. It is often used in colder climates.
#2 Diesel: The most commonly used diesel fuel, especially in warmer climates. It has higher energy content than #1 diesel but is more prone to gelling when temperatures drop.
Blended Diesel: A mixture of #1 and #2 diesel fuels, designed to balance the performance characteristics of both types. It is often used during seasonal transitions in temperature.
Cold Weather Impact on Diesel Fuel
When diesel fuel is exposed to cold temperatures, several key changes occur, each of which can have a profound impact on engine performance.
1. Gelling: How Paraffin Wax Solidifies
The most well-known issue associated with diesel fuel in cold temperatures is gelling. As the temperature drops, the paraffin wax in diesel fuel begins to crystallize. The wax particles start forming larger structures, eventually turning the liquid fuel into a thick, gel-like substance that can no longer flow freely through fuel lines or injectors.
At What Temperature Does Diesel Gel?
The temperature at which diesel begins to gel varies depending on the type of diesel and its specific composition. For standard #2 diesel, gelling typically begins around 10°F (-12°C). For #1 diesel, the gelling point is much lower, often below -20°F (-29°C).
Effects of Gelling on Engines
Gelling can severely impact engine operation. Because the fuel no longer flows easily, it can clog fuel filters and injectors, leading to poor combustion, reduced power output, and in some cases, complete engine failure. Vehicles that rely on diesel engines, particularly in cold climates, must take steps to prevent gelling to avoid these costly and inconvenient breakdowns.
2. Cloud Point: The Early Signs of Trouble
Before diesel fuel fully gels, there is an intermediate stage known as the cloud point. The cloud point refers to the temperature at which paraffin wax begins to solidify into tiny crystals, creating a cloudy appearance in the fuel.
Why the Cloud Point Matters
While the fuel remains mostly liquid at the cloud point, the appearance of wax crystals signals the onset of potential problems. If the temperature continues to drop, these crystals can grow larger and begin to clog fuel filters, leading to restricted fuel flow and engine performance issues.
3. Pour Point: The Final Threshold
The pour point is the lowest temperature at which diesel fuel can still flow. Beyond this point, the fuel becomes so thick and viscous that it no longer moves through fuel lines or injectors.
How the Pour Point Affects Operations
Once the pour point is reached, the fuel is effectively unusable without external intervention. Diesel engines depend on a consistent supply of liquid fuel to operate, and once the fuel reaches its pour point, the engine will stall, often requiring manual heating or the use of special additives to restore normal function.
See also: Why Does Diesel Fuel Gel?
Problems Associated With Cold Diesel Fuel
1. Clogged Fuel Filters
Fuel filters play a critical role in protecting the engine by capturing contaminants and preventing them from entering the fuel system. However, in cold weather, solidified wax crystals can accumulate in the fuel filter, blocking the flow of fuel to the engine.
Why Clogged Filters Are Problematic
A clogged fuel filter restricts the amount of fuel that reaches the engine, leading to reduced performance, poor acceleration, and, in some cases, engine stalling. If the filter becomes completely blocked, fuel flow will cease entirely, and the engine will shut down.
2. Water Contamination and Ice Formation
Diesel fuel is also susceptible to water contamination, which can lead to problems in cold temperatures. Water can enter the fuel tank through condensation or as a result of contamination during fuel handling. When temperatures drop, the water in the fuel system can freeze, forming ice crystals that block fuel lines and filters.
The Role of Water Separators
Many diesel engines are equipped with water separators to remove water from the fuel before it reaches the engine. However, in cold weather, even small amounts of water can freeze, leading to blockages that prevent the fuel from reaching the engine. This can cause poor performance, starting difficulties, and even engine damage.
3. Injector Malfunctions

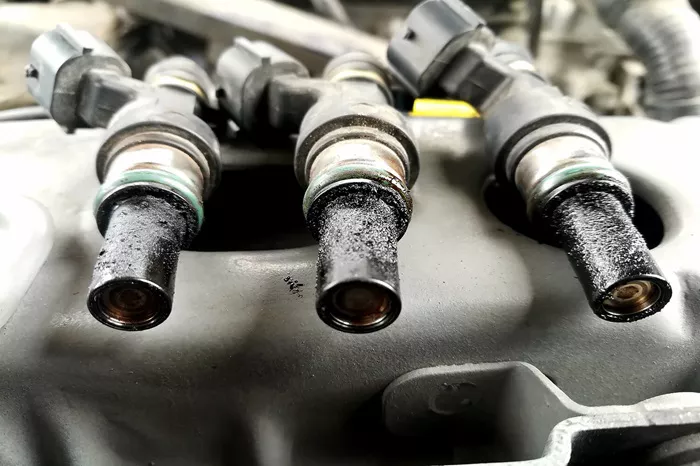

Diesel fuel injectors are precision components that deliver fuel to the engine in finely atomized sprays. When diesel fuel gels, the injectors may struggle to deliver the correct amount of fuel, leading to poor combustion, reduced efficiency, and increased emissions.
The Importance of Clean Injectors
In cold weather, keeping injectors clean and free of obstructions is critical to maintaining engine performance. Gelling and ice formation can clog injectors, leading to incomplete combustion and potentially damaging the engine over time.
How to Prevent Cold Weather Diesel Problems
Preventing cold weather problems with diesel fuel requires a combination of proactive measures, proper fuel selection, and the use of additives designed to improve cold-weather performance.
1. Using Winterized Diesel
Many fuel suppliers offer winterized diesel, which is specially formulated to resist gelling in cold temperatures. Winterized diesel is typically a blend of #1 and #2 diesel, with additives that lower the gelling point and improve flow characteristics in cold weather.
How Winterized Diesel Works
Winterized diesel contains less paraffin wax than standard diesel, making it less prone to gelling. Additionally, it may include cold flow improvers and anti-gel additives that help keep the fuel flowing even in sub-zero temperatures.
2. Anti-Gel Additives
Anti-gel additives are chemical formulations that can be added to diesel fuel to lower its gelling point and improve cold weather performance. These additives work by modifying the structure of paraffin wax crystals, preventing them from clumping together and forming large obstructions.
Choosing the Right Additive
There are many different types of anti-gel additives available, each designed for specific applications and temperature ranges. It’s important to choose an additive that is compatible with your fuel type and provides the necessary protection for the temperatures you expect to encounter.
3. Keeping the Fuel Warm
One of the most effective ways to prevent diesel fuel from gelling is to keep it warm. There are several ways to do this, including:
Fuel Tank Heaters: Installing heaters in the fuel tank can help maintain the temperature of the fuel and prevent gelling.
Block Heaters: Block heaters warm the engine block and fuel lines, making it easier for the engine to start in cold weather.
Fuel Line Heaters: These heaters are installed along the fuel lines to prevent wax crystals from forming and blocking fuel flow.
4. Water Management
Preventing water contamination is critical in cold weather. Regularly draining water from the fuel system and using water separators can help keep the fuel system free of ice and blockages.
Water-Absorbing Additives
There are also water-absorbing additives available that can help remove water from the fuel before it freezes. These additives chemically bind with the water, allowing it to burn off with the fuel during combustion rather than freeze and cause blockages.
The Importance of Regular Maintenance
1. Checking Fuel Filters
Regularly checking and replacing fuel filters is one of the most important maintenance tasks for diesel engines, especially in cold weather. A clean filter ensures that fuel can flow freely to the engine, even if some wax crystals or contaminants are present.
2. Draining Water Separators
Water separators should be drained regularly, particularly in cold weather. This prevents water from freezing in the fuel system and causing blockages.
3. Using Cold Weather Engine Oil
In addition to maintaining the fuel system, it’s also important to use engine oil that is formulated for cold weather. Cold weather oil has a lower viscosity, allowing it to flow more easily and provide better lubrication during cold starts.
Conclusion
Cold weather poses significant challenges to diesel fuel, primarily due to the behavior of paraffin wax and the risk of water contamination. Gelling, clouding, and poor flow can all lead to reduced engine performance, starting difficulties, and costly breakdowns. However, by using winterized diesel, adding anti-gel additives, maintaining the fuel system, and keeping the fuel warm, these issues can be mitigated.
For diesel engine operators, understanding what happens to diesel fuel in cold weather and taking the appropriate preventative measures can mean the difference between reliable operation and expensive downtime. With the right approach, it’s possible to keep diesel engines running smoothly even in the coldest conditions.
