Hydrogen is a versatile element with applications ranging from energy production to space exploration. In its liquid form, hydrogen serves as a dense energy source, crucial for various industrial processes and as a propellant in rocketry. Producing liquid hydrogen involves several stages, each requiring precise control and advanced technology. This article provides a comprehensive overview of how liquid hydrogen is produced, from its extraction to its liquefaction and storage.
Extraction of Hydrogen Gas
The journey to liquid hydrogen begins with the extraction of hydrogen gas (H₂) from various sources. The most common method is Steam Methane Reforming (SMR), which involves reacting methane (CH₄) with steam (H₂O) in the presence of a catalyst at high temperatures. This process yields hydrogen gas and carbon monoxide (CO).After extraction, the hydrogen gas is purified to remove impurities such as carbon monoxide, carbon dioxide, and hydrocarbons. Purification methods include Pressure Swing Adsorption (PSA) and membrane separation, ensuring that the hydrogen meets the required purity standards for subsequent processes.
Liquefaction of Hydrogen Gas
Once purified, hydrogen gas must be cooled to cryogenic temperatures to transition it into a liquid state. This liquefaction process is energy-intensive and involves several key steps:
Compression: The purified hydrogen gas is compressed, increasing its pressure and temperature.
Cooling: The compressed gas is then cooled using a series of heat exchangers that employ refrigeration cycles. These cycles often utilize refrigerants like helium and nitrogen to achieve the extremely low temperatures necessary for liquefaction.
Expansion: As the gas cools, it expands and undergoes phase changes, eventually condensing into liquid hydrogen at temperatures below -253°C (-423°F).
It’s important to note that liquefaction consumes more than 30% of the hydrogen’s energy content, making it an expensive process. Additionally, some hydrogen may be lost due to evaporation, known as “boil-off,” especially when using small tanks with large surface-to-volume ratios.
Storage and Transportation

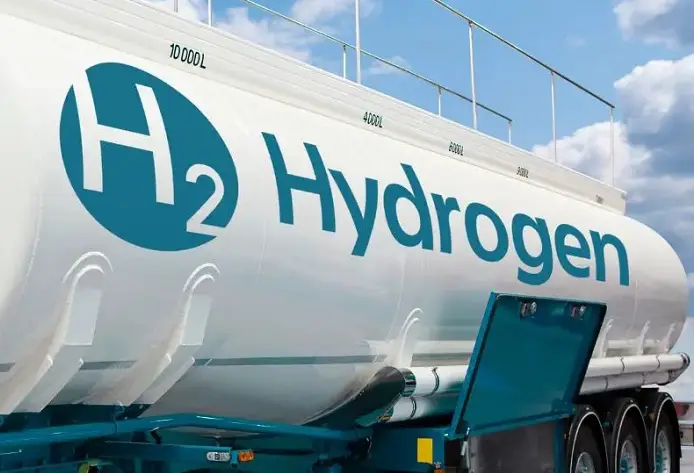

After liquefaction, liquid hydrogen is stored in large, insulated cryogenic tanks designed to maintain its low temperatures and minimize boil-off losses. For transportation over long distances, liquid hydrogen is loaded into specialized tanker trucks equipped with super-insulated, cryogenic containers. These tankers help preserve the liquid state of hydrogen during transit, ensuring that it reaches distribution points where it can be vaporized and supplied as a high-pressure gas for various applications.
Safety Considerations
Handling liquid hydrogen requires strict safety protocols due to its extremely low temperatures and flammability. At temperatures near its boiling point, hydrogen is colder than liquid oxygen, which can pose explosion hazards if not managed properly. Specialized training and equipment are essential to mitigate risks associated with storage, handling, and transportation.
Innovations in Hydrogen Production
Advancements in technology aim to make hydrogen production more efficient and environmentally friendly. For instance, researchers at the University of Wollongong have developed an electrolyzer with 95% efficiency, significantly reducing energy waste compared to current commercial electrolysis methods. This innovation is attracting global interest, as green hydrogen is essential for decarbonizing sectors like chemical manufacturing, steel production, shipping, aviation, and heavy transport.
Additionally, companies like Plug Power are investing in green hydrogen production by constructing plants that utilize electrolysis powered by renewable energy sources. These plants aim to produce liquid hydrogen without emitting carbon dioxide, supporting the transition to a low-carbon economy.
Future Outlook
The demand for liquid hydrogen is expected to grow, driven by its applications in clean energy and transportation. Projects like the Kintore Hydrogen initiative in Scotland, which plans to develop a 500-megawatt facility by 2028, highlight the potential for large-scale green hydrogen production. Such developments aim to leverage abundant renewable energy resources, like wind power, to produce hydrogen sustainably.
In summary, producing liquid hydrogen involves extracting hydrogen gas through methods like steam methane reforming, purifying the gas, and then liquefying it via energy-intensive cooling processes. Ongoing technological advancements aim to improve the efficiency and sustainability of hydrogen production, storage, and transportation, supporting its role in a future low-carbon energy landscape.
